# Enapter Dryer Web GUI

# Getting Started

Enapter Dryer Web GUI (Graphical User Interface) made for local control and monitoring using a web browser.

Note

Supported firmware versions of Dryer 4.1:

  • DRY 4.1 with firmware version 4.0.0 or later.

Warning

Enapter Dryer Web GUI works over an insecure HTTP connection and was designed for usage in isolated Local Area Networks for Operation, Administration and Management. Please take into account that connection to public networks such as the Internet is not recommended for security reasons.

# Connections

Warning

If connected device do not have Auto MDI-X (auto crossover) use an Ethernet crossover cable to connect it to Enapter Dryer 4.1.

Connect Dryer using one of the methods described in Enapter Electrolyser Web GUI Documentation (opens new window).

# Physical Connection Specification

Parameter Description
Cable CAT5 or CAT6 Ethernet cable with RJ45 connectors. Max Distance: 100 meters / 328 ft.
Speed 10/100BASE-T. An Ethernet network transmitting at 10 and 100 Mbps.

# Access The Web GUI

  1. Find the label with UCM ID and PIN code on the back panel of Dryer.
  2. Open the Web browser.
  3. It is two main ways to access the Web GUI.
  • Way 1. Use the UCM ID to create a link with .local hostname like http://UCM_ID.local.
    For example: http://02CCF660F6.local.
    Web GUI - UCM ID Link
  • Way 2. Use the IP address of Dryer.

Note

mDNS must be enabled to resolve .local hostname.
Use HTTP protocol.

Warning

It is known issue of using Wi-Fi under Windows with access (name resolution) to the .local hostname. In case you can not access the Web GUI this way please use a local ethernet connection to Dryer or IP address as a hostname.

  1. In opened page enter UCM ID and PIN code.
  2. Click on the Login button to access the Web GUI.

# Layouts

Enapter Dryer Web GUI has 7 main layouts:

DRY41 Web GUI Layouts

  1. The Header Toolbar
  2. Production Bar
  3. Active Events Bar
  4. Monitoring Sidebar
  5. Status Sidebar
  6. Main Configuration Bar
  7. Dryer Control Network

# The Header Toolbar

DRY41 Web GUI Header Toolbar

Parameter Description
Reboot Command to Reboot the device.
Locate on Command to enable or disable the Locate device functionality.
When enabled red, yellow and green LEDs are blinking.
Logout Command to Logout from Web GUI.
Help Useful links:
1. Our customer service at support@enapter.com.
2. Dryer 4.1 Documentation (opens new window).
5. Web GUI Documentation.
6. Modbus Registers.

# Production Bar

DRY41 Web GUI Production Bar

Parameter Description
Inlet pressure Input hydrogen pressure (PT00). In bar.
Outlet pressure Output hydrogen pressure (PT01). In bar.

# Active Events Bar

DRY41 Web GUI Active Events Bar

Parameter Description
Type Type of event.
Possible types of events:
1. Warning - Heads-up event which should be taken into account to avoid Error or Fatal Error.
2. Error - System Stopped. Recoverable error.
3. Fatal Error - System stopped. Unrecoverable error. Hardware repair required. Please contact Enapter support.
Code The code of all events for DRY 4.1 can be found at Warnings, Error and Fatal Error Codes (opens new window).
Name The name and description of all events for DRY 4.1 can be found at Warnings, Error and Fatal Error Codes (opens new window).

# Monitoring Sidebar

DRY41 Web GUI Monitoring Sidebar

Parameter Description
Dryer Status Current operational status of the dryer.
Possible states:
1. WAITING FOR POWER - The dryer is waiting to be powered on.
2. WAITING FOR PRESSURE - The dryer is waiting for a sufficient amount of inlet pressure.
3. STOPPED BY USER - The dryer is not drying hydrogen because it has been stopped by the user.
4. STARTING - The dryer is starting up and checking which state to be in next.
5. WAITING FOR ELECTROLYSER - The dryer is waiting for at least one electrolyser to be ready.
6. STANDBY - The dryer is waiting for the output pressure to decrease below the allowable threshold value.
7. WAITING FOR RULE ENGINE - The dryer is waiting for the rule engine to become ready.
8. IDLE - The dryer is automatically stopped by DCN/IDCN, will be automatically started when at least 1 EL 4.1 becomes steady.
9. DRYING 0 - Block 0 is drying the hydrogen, while block 1 is being heated and regenerated.
10. COOLING 0 - Block 0 is drying the hydrogen, while block 1 is being cooled down after its regeneration.
11. SWITCHING 0 - Block 0 is drying the hydrogen while slowly pressurizing block 1.
12. PRESSURIZING 0 - Both blocks dry the hydrogen to smoothly transition into the drying cycle of block 1.
13. FINALIZING 0 - Block 1 dries the hydrogen and block 0 prepares to be regenerated.
14. DRYING 1 - Block 1 is drying the hydrogen, while block 0 is being heated and regenerated.
15. COOLING 1 - Block 1 is drying the hydrogen, while block 0 is being cooled down after its regeneration.
16. SWITCHING 1 - Block 1 is drying the hydrogen while slowly pressurizing block 0.
17. PRESSURIZING 1 - Both blocks dry the hydrogen to smoothly transition into the drying cycle of block 0.
18. FINALIZING 1 - Block 0 dries the hydrogen and block 1 prepares to be regenerated.
19. ERROR - The dryer has stopped due to an error. Some errors can be solved remotely.
20. BYPASS - The dryer is manually disabled and hydrogen gas can pass through both blocks.
21. BYPASS1 - The dryer is manually disabled and hydrogen gas can pass through block 0.
22. BYPASS2 - The dryer is manually disabled and hydrogen gas can pass through block 1.
23. MAINTENANCE - The device is in maintenance mode.
24. EXPERT - The dryer is in a special mode used to change dryer configurations.
25. FSR WAIT BEGIN - Factory Settings Reset initiated, waiting for button hold confirmation.
26. FSR WAIT CONFIRM - Factory Settings Reset in progress, waiting for button release to confirm.
27. FSR WAIT END - Factory Settings Reset confirmed, waiting to complete the reset.
28. FSR DECLINED - Factory Settings Reset was declined (button not released in time).
29. IDCN WAIT START - DCN pairing initiated, waiting for button hold.
30. IDCN WAIT CONFIRM - DCN pairing in progress, waiting for button release.
31. IDCN BEGIN - DCN pairing started, waiting for network acknowledgement.
32. IDCN COMMIT - DCN pairing commit requested, waiting for confirmation.
33. IDCN COMMIT ACK - DCN pairing commit confirmed, waiting for acknowledgement.
34. IDCN WAIT SYNCED - DCN pairing waiting for synchronisation to complete.
35. IDCN SYNCED - DCN pairing completed successfully.
36. IDCN DECLINED - DCN pairing was declined or timed out.
37. IDCN CANCEL - DCN pairing is being cancelled.
38. AIR REGENERATION - Both drying blocks are being regenerated using air; both heaters active, fans off.
39. OTA - Firmware update is in progress.
Input Pressure Input hydrogen pressure. Related sensor is PT00. In bar.
Output Pressure Output hydrogen pressure. Related sensor is PT01. In bar.
Temperature 0 Temperature of drying block 0. Related components are TT00, H100, F101. In °C.
Temperature 1 Temperature of drying block 1. Related components are TT01, H101, F102. In °C.
Time Left Time left till the current status ends.

# Status Sidebar

DRY41 Web GUI Status Sidebar

Parameter Description
Dryer Status The main system state of Dryer.
The description of all possible states can be found in Monitoring Sidebar.
Status LEDs Indications Three LED indicators reflecting the current hardware status. For more information please check Status LEDs Indications for DRY 4.1 (opens new window).

# Main Configuration Bar

Main Configuration Bar has 3 sub-layouts:

# Commands

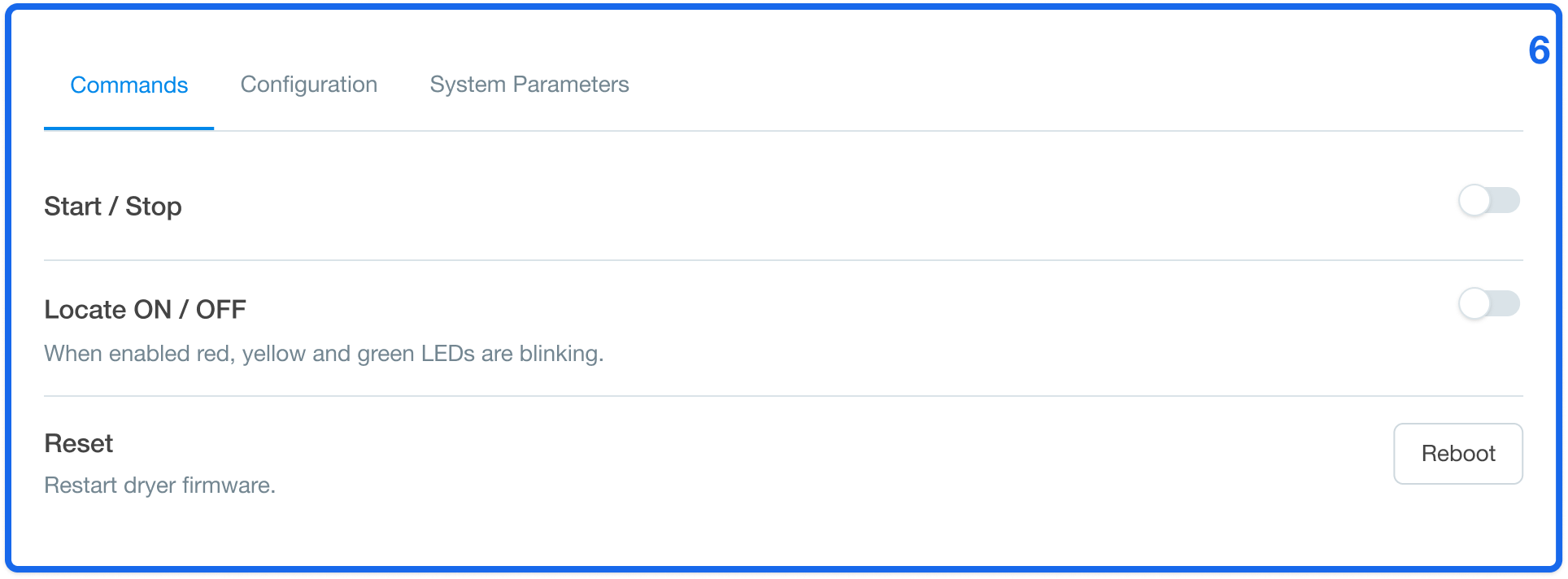

DRY41 Web GUI Commands

# Start / Stop

Remote Start or Stop hydrogen drying.

# Locate ON / OFF

Command to enable or disable the Locate device functionality.

When enabled red, yellow and green LEDs are blinking.

# Reset

Command to restart the dryer firmware. Press the Reboot button to confirm.

# Configuration

DRY41 Web GUI Configuration

# Ethernet Settings

By default the DHCP is enabled.

If you want to change Ethernet Settings please follow these steps:

  • Tap on the Change button.
  • In the opened tab you can change the following ethernet settings:
    • IP Address
    • Netmask
    • Gateway IP
  • Tap on the Apply button to change Ethernet Settings.
  • Tap on the Cancel button to discard the changes.

# Output Pressure Thresholds

Pressure thresholds for dryer operation control.

  • Maximum Output Pressure - reaching this pressure switches Dryer to standby and stops drying. Range: 10–35 barg. Must be > Minimum Output Pressure.
  • Minimum Output Pressure - switches Dryer back to drying when pressure falls below this value. Range: 5–33 barg. Must be < Maximum Output Pressure.

To change Output Pressure Thresholds:

  • Tap on the Change button.
  • Update the values and tap Apply.
  • Tap on the Cancel button to discard the changes.

Warning

Changing the pressure thresholds can lead to intense cycling. The Customer takes full responsibility when changing the pressure values from the factory defaults.

# System Time Configuration

Warning

System's UTC date and time can't be changed when Dryer is connected to Enapter Cloud.

Set system's UTC date & time.

If you want to change System Time Configuration please follow these steps:

  • Tap on the Change button.
  • In the opened tab you can change the following parameters:
    • System Date
    • System Time
  • Tap on the Apply button to change System Time Configuration.
  • Tap on the Cancel button to discard the changes.
  • Or you can synchronize System Date and System Time with your browser by clicking on the Sync with your browser time button.

# System Parameters

DRY41 Web GUI System Parameters

Parameter Description
Model Model of Dryer. Must be DRY41.
Firmware Version Current firmware version of Dryer (Ex: 4.0.0-r1.release).
The Update button. Please check the Updating the Firmware Using Web GUI guide for more information.
Serial Number Chassis serial number, configured at the factory (Ex: AA2101019SPI).
Product Code Product code, defined by eFuses and configuration (Ex: DRY410535A2AXV01-03).
eFuse (0x2001) eFuse version (Ex: 2.0 R1.0).
UCM Version Current firmware version of the UCM (Ex: 1.8.0-rc.12.88300).
Ethernet MAC Address Ethernet MAC address unique ID (Ex: 00:80:E1:4F:92:76).
UCM ID UCM's unique ID (Ex: 02CCF660F6042FB1447E5B020E6744FCC325A5F9).
Wi-Fi MAC Address Wi-Fi MAC address unique ID (Ex: C8:2B:96:A8:F5:2C).

# Updating the Firmware Using Web GUI

How to Get Firmware Package

If you are unable to update firmware using Enapter Cloud or Enapter Mobile Application, write to support@enapter.com and get files for offline update.

Never Upload Firmware Files Received From an Untrusted Source

Enapter is not responsible for any misbehavior or harm caused by untrusted firmware usage or violating update instructions.

It is always recommended to update the firmware using Enapter Cloud or Enapter Mobile Application. However, in cases when it is not possible to have your device connected to Enapter Cloud, it is possible to update the firmware using Web GUI.

Warning

Do not power off the device during the firmware update.

Warning

Remove Dryer Control Network (opens new window) before updating the firmware.

  1. Make sure you have physical access to the device before starting the update process.
  2. Remove Dryer Control Network (opens new window) before updating the firmware.
  3. Save and unzip the received firmware package to a local hard drive of your computer so that you have two files named fw_ucm_DRYER_X.X.X.ena and fw_cbd_DRYER_X.X.X.ena next to each other.
  4. Open Web GUI of your Dryer.
  5. Navigate to System Parameters tab.
  6. Click Update link. The Upload Firmware screen will appear.
  7. Drag and drop or select the file with UCM firmware named fw_ucm_DRYER_X.X.X.ena from your local hard drive.
  8. On the screen you will see the confirmation that the firmware file is recognized by showing the UCM Firmware version.
  9. Press Upload button and wait for the process to finish both the Upload and Installation steps. It will take up to 10 minutes. Don't turn the Dryer off and don't close the browser.
  10. Press Done after receiving the message UCM firmware was updated successfully.
  11. Drag and drop or select the file with Control Board firmware named fw_cbd_DRYER_X.X.X.ena.
  12. On the screen you will see the confirmation that the firmware file is recognized by showing the Control Board Firmware version.
  13. Press Upload button and wait for the process to finish both the Upload and Installation steps. It will take up to 10 minutes. Don't turn the Dryer off and don't close the browser.
  14. Press Done after receiving the message Control Board was updated successfully.
